Anti-Lock Braking Systems Panel Trainer
Give students hands-on experience with the hydraulic and electronic systems behind modern anti-lock braking. The Anti-Lock Braking Systems Panel Trainer (755-01) allows students to investigate ABS operation, wheel sensors, hydraulic modulation, wheel slip, electronic signals, and braking system diagnostics.

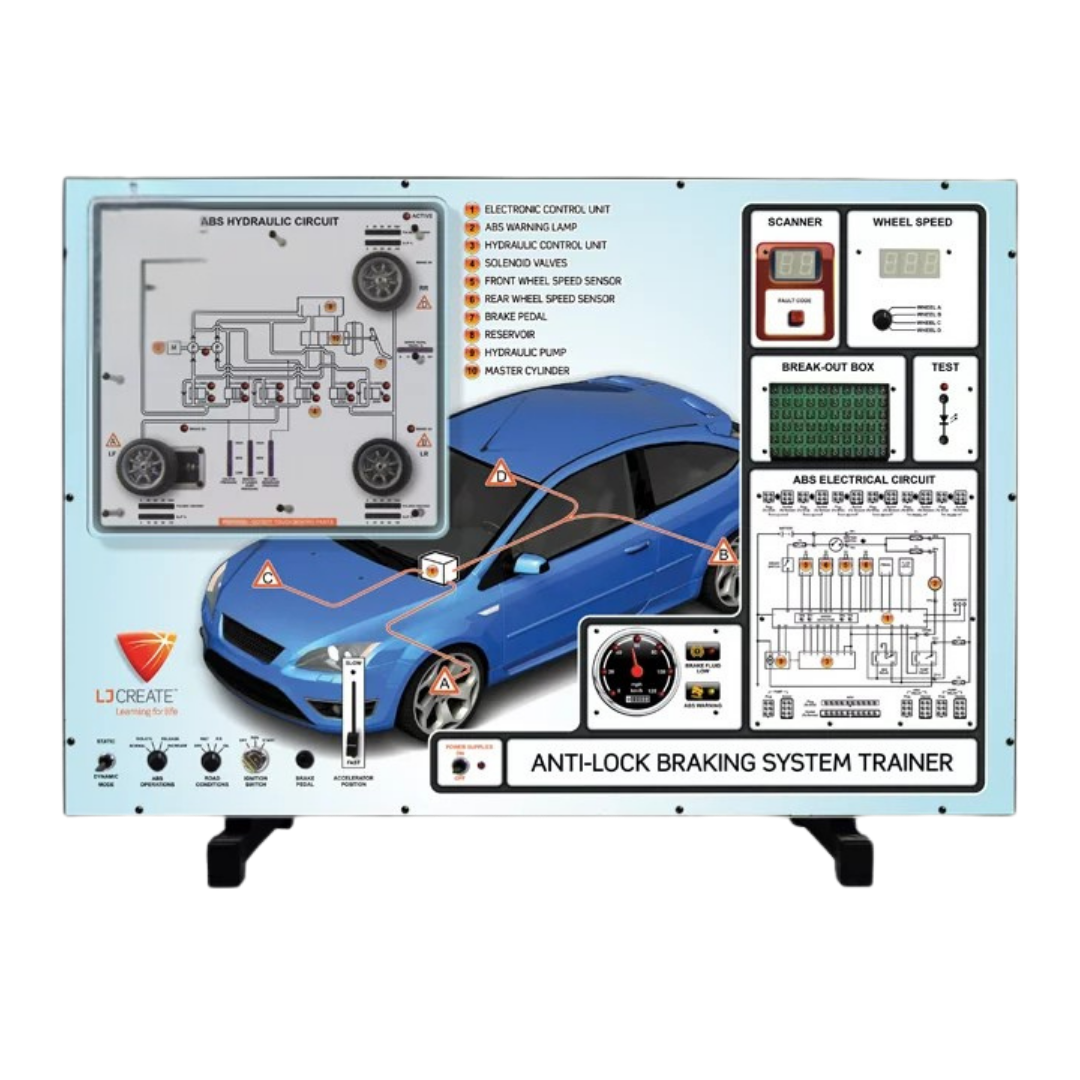

The Anti-Lock Braking Systems Panel Trainer (755-01) from LJ Create supports hands-on learning of a typical four-wheel anti-lock braking system. Students can investigate both the hydraulic and electrical operation of ABS while simulating changes in road conditions to see how wheel slip and vehicle stability affect braking performance.
The trainer supports both static and dynamic ABS investigations, allowing students to explore pressure isolation, pressure dump, pressure increase, and normal-pressure operation. Built-in fault insertion, an onboard fault-code scanner, and accessible system components give students practical opportunities to diagnose sensors, hydraulic modulation, electronic controls, and other ABS system faults.
Features
- Four-wheel ABS simulation demonstrates complete anti-lock braking operation.
- Adjustable road conditions show how changing traction affects ABS performance.
- Hydraulic circuit and solenoids demonstrate ABS pressure control.
- Hall Effect and inductive wheel sensors allow students to compare sensor technologies.
- Electronic hydraulic modulator demonstrates electronically controlled braking.
- Onboard fault-code scanner supports practical ABS diagnostics.
- Fault insertion creates realistic troubleshooting scenarios.
Braking & Vehicle Dynamics
Explore braking principles, vehicle acceleration and deceleration, and their relationship to vehicle control.
Wheel Spin, Slip & Stability
Investigate wheel spin and slip and analyze how slip affects braking and vehicle stability.
ABS Operating Phases
Identify the different phases of ABS operation, including pressure isolation, dump, increase, and normal pressure.
ABS Sensors & Switches
Test ABS sensors and switches while investigating Hall Effect and inductive wheel sensor operation.
ABS Hydraulic Systems
Investigate the ABS hydraulic circuit, solenoid operation, and electronically controlled hydraulic modulation.
ABS Electronic Controls
Explore electronic signals and the operation of the ABS Electronic Control Unit (ECU).
ABS Diagnostics & Fault Finding
Read ABS fault codes and diagnose sensor, hydraulic modulator, and other simulated system faults.
Curriculum & Program Integration
This automotive trainer aligns with LJ Create’s AutoLab, which combines hands-on training systems with digital curriculum and instructional resources. Schools can use the trainer as a standalone learning system, integrate it into an existing automotive course, select individual LJ Create courses to supplement their curriculum, or implement the complete AutoLab program.
The curriculum for this learning system includes:
- Hands-on training experiments and activities
- Interactive online curriculum and instructional resources
- Teacher support materials and guided learning content
This flexible approach allows instructors to incorporate individual learning systems and curriculum where they fit best or build a more comprehensive automotive technology program.
LJ Create’s Cloud-Based Software
The trainer can also be used with LJ Create’s optional cloud-based software, which extends hands-on learning with interactive theory presentations, practical tasks, investigations, and assessments. Digital content connects directly to activities performed on the training equipment, helping instructors blend online instruction with practical automotive skill development.
Anti-Lock Braking Systems Panel Trainer (755-01) Product Details
Trainer Capabilities
- Four-wheel anti-lock braking system simulation
- Static ABS operation
- Dynamic ABS operation in real time
- Simulated changes in road conditions
- ABS hydraulic circuit
- ABS solenoid operation
- Electronically controlled hydraulic modulator
- ABS Electronic Control Unit (ECU)
- Hall Effect wheel sensors
- Inductive wheel sensors
- Electronic ABS signals
- Onboard fault-code scanner
- Fault-insertion capabilities
System Includes
- Anti-Lock Braking Systems Panel Trainer
- Digital curriculum
- Wall-mounting brackets
- Bench stands
- Accelerator pedal
Requirements
- Lab oscilloscope
- Digital multimeter
Technical Specifications
- Trainer Dimensions: Approx. 35.4 × 6.7 × 23.6 in (W × D × H)
