Connected Smart Factory (CSM)
Your classroom, transformed into a complete smart manufacturing system.
The Connected Smart Manufacturing System (CSM) is a turnkey training platform that simulates a complete Industry 4.0 production line, combining FANUC robotics, Rockwell controls, RFID tracking, and modular project-based learning for advanced manufacturing education.
A complete manufacturing line, from raw materials to finished materials, designed for the classroom.

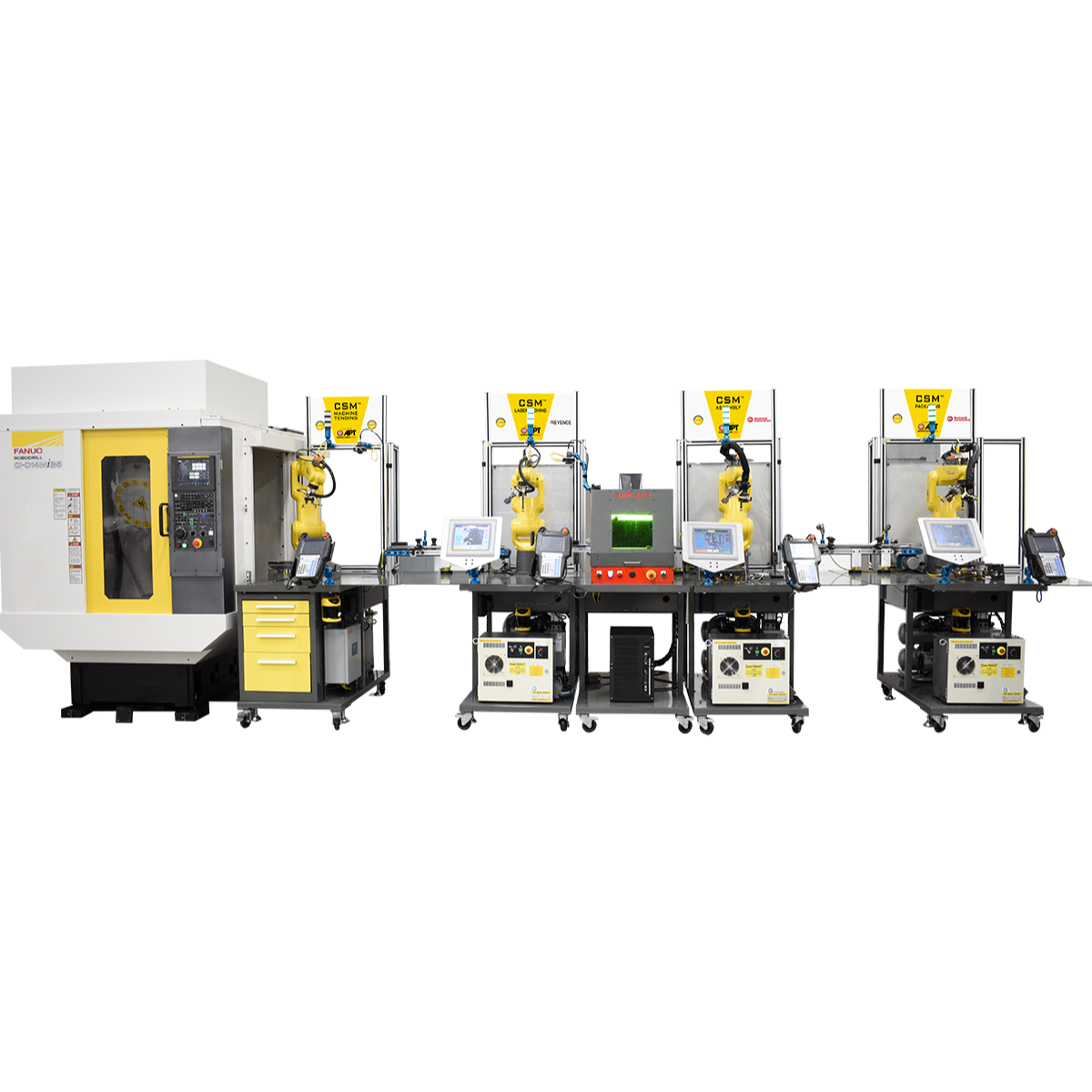

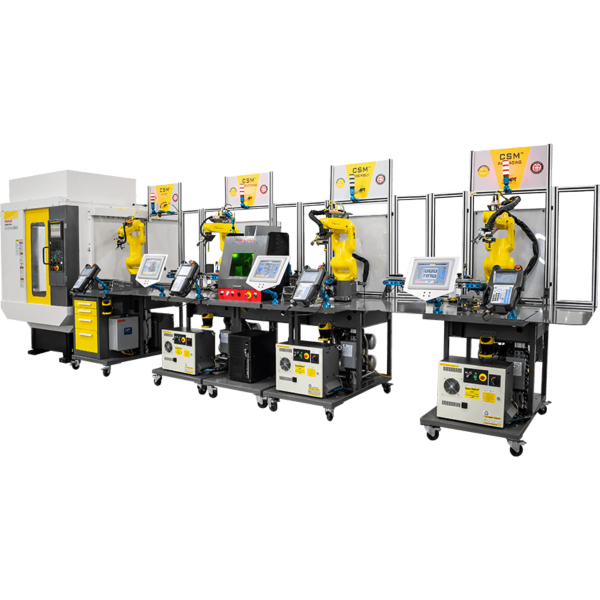

The Connected Smart Manufacturing System (CSM), developed by APT Manufacturing Solutions in partnership with FANUC and Rockwell Automation, provides a fully integrated manufacturing line for advanced training in Industry 4.0. From raw materials to finished products, the CSM gives students hands-on experience with every step of modern manufacturing, including machine tending, assembly, laser etching, packaging, and palletizing.
Each station is equipped with FANUC robotics, Rockwell PLC/HMI controls, SMC pneumatics, RFID tracking, and onboard compressors, featuring wireless connections that enable cells to be operated either as a complete system or individually for focused instruction. Instructors can introduce real-world challenges like fault detection, recipe management, and batch scheduling to mirror the complexities of today’s smart factories.
The CSM bridge theory, with practice, involves simulating the workflows, safety systems, and data-driven decision-making required in connected manufacturing environments.
Features:
• Complete, modular manufacturing line with FANUC robots and Rockwell controls
• RFID part tracking for real-time process monitoring
• Multiple stations: machine tending, laser etching, assembly, packaging, palletizing
• Integrated pneumatics and safety systems with interlocks and wireless connectivity
• Realistic project-based learning (e.g., dice holder manufacturing)
• Portable modules for flexible classroom/lab deployment
Robot & Cobot Programming
Train on FANUC robots for machine tending, assembly, packaging, and palletizing tasks.
PLC & HMI Programming
Gain hands-on experience programming Rockwell CompactLogix PLCs and PanelView HMIs.
Vision & Inspection Systems
Develop skills in 2D vision guidance, inspection, and serialized laser etching.
Smart Factory Processes
Understand networked communications, recipe management, and batch scheduling in connected systems.
Data Analytics & IIoT Concepts
Explore real-time monitoring and RFID tracking for production control and optimization.
Safety & Compliance
Learn integrated safety protocols, machine interlocks, and risk assessment in industrial automation.
FANUC CERT Program
- CSM qualifies for FANUC CERT certifications in robotics, vision, CNC integration, and Industry 4.0 skills.
- Certifications administered by NOCTI and aligned with industry-recognized standards.
Project-Based Learning (PBL)

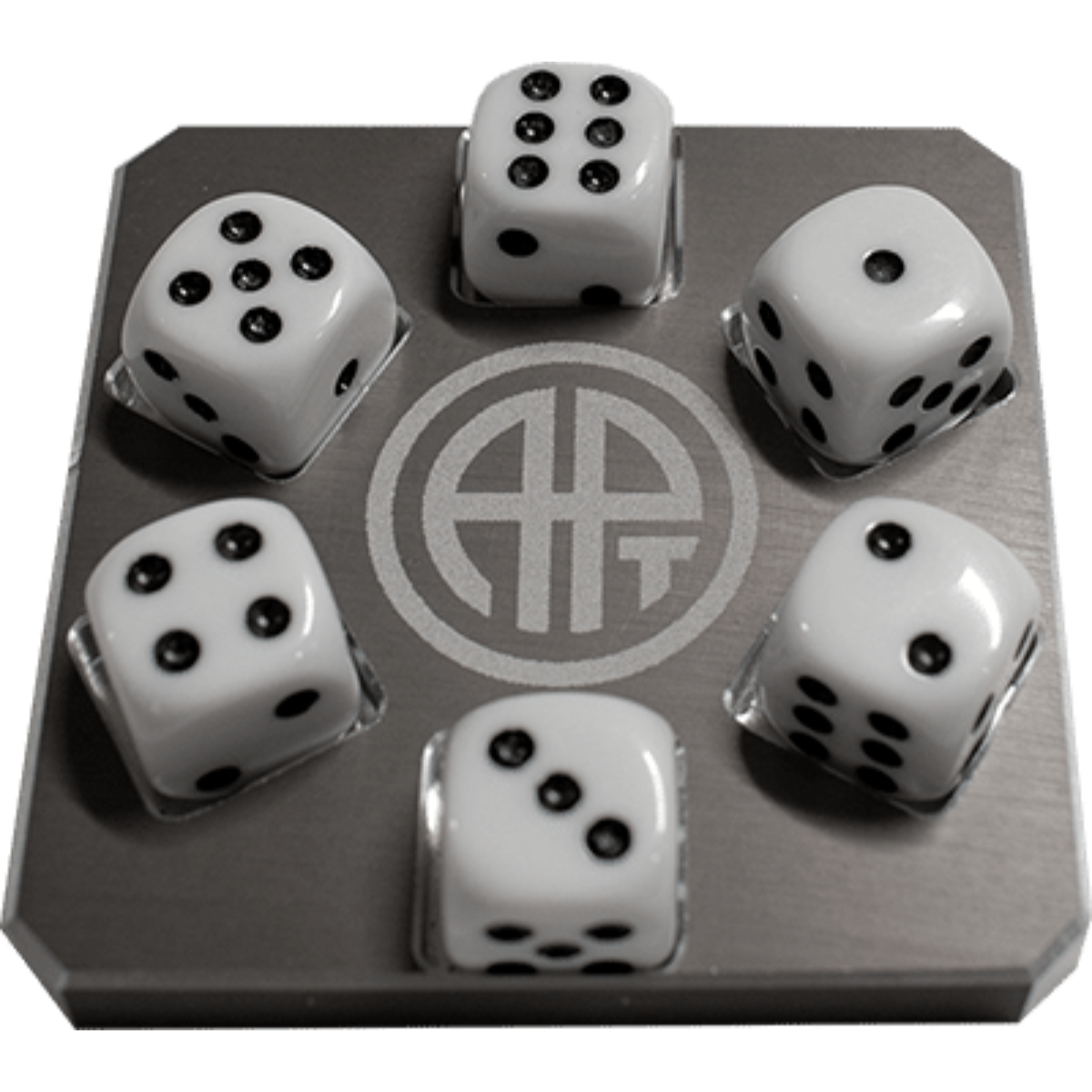

- Dice Holder Project

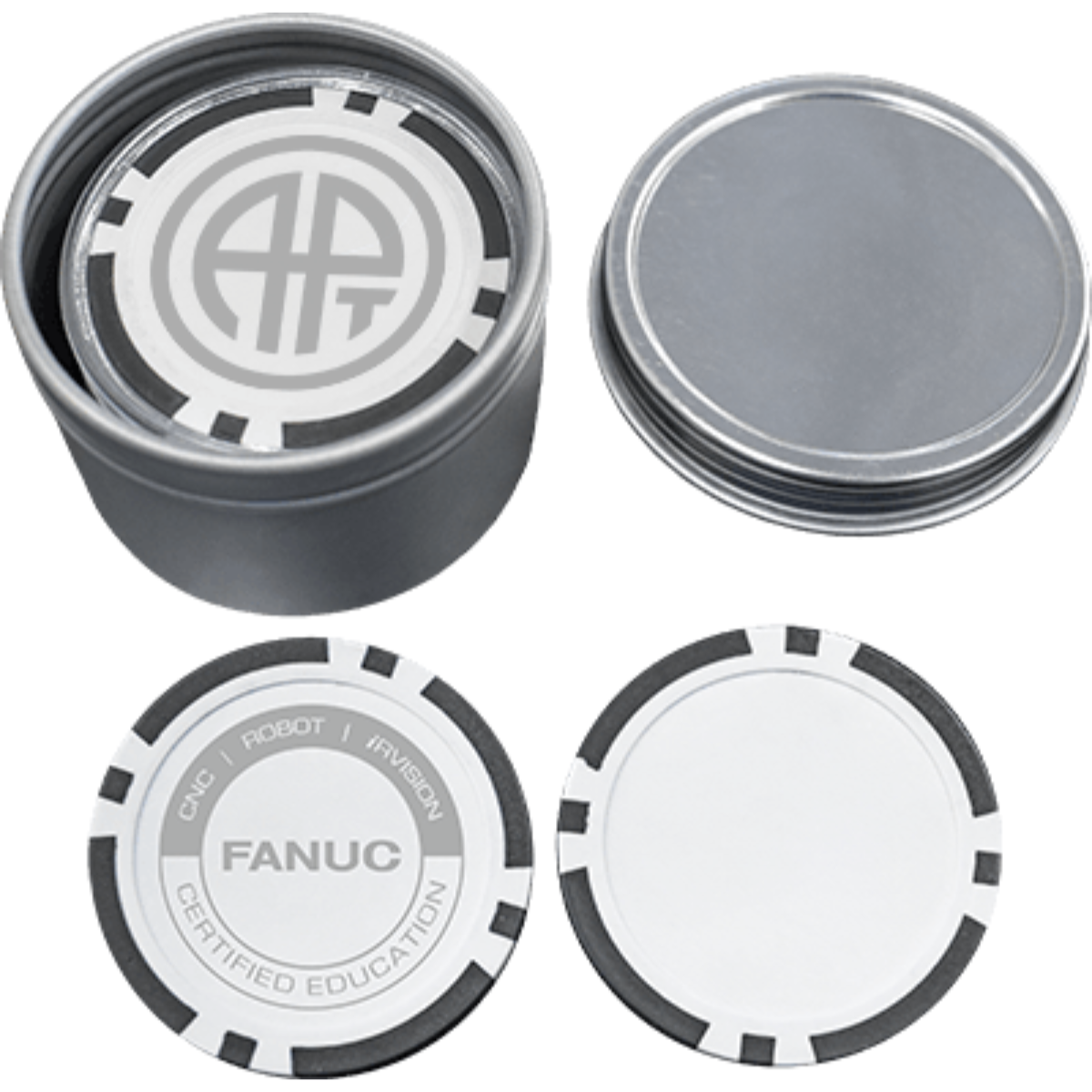

- Token Project
Rockwell EDU Toolkit
- Studio 5000 Logix Designer®, View Designer®, and a full suite of Rockwell software for automation programming.
Connected Smart Factory Product Details:

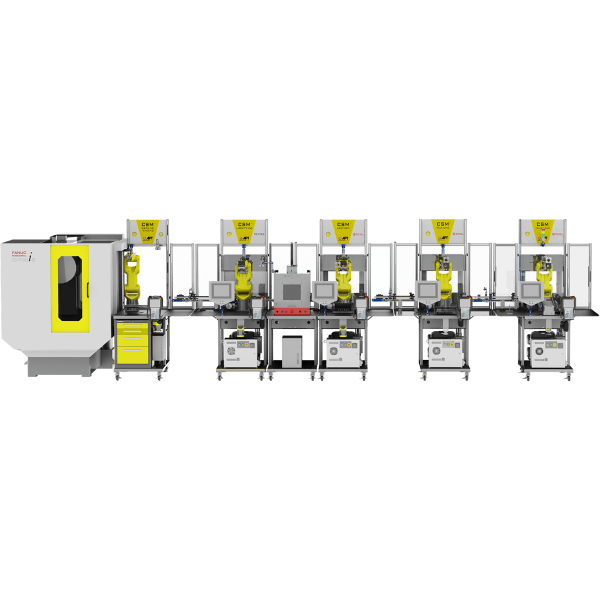

- Stations:
- OP10 Machine Tending (FANUC Robodrill integration)
- OP20 Laser Etching/Serialization
- OP30 Assembly
- OP40 Packaging
- OP50 Palletizing
- Robotics: FANUC robots for each cell, configurable per application
- Controls: Rockwell CompactLogix PLC, PanelView HMI, wireless communication between stations
- Pneumatics: SMC pneumatics with onboard compressors
- Vision: Optional FANUC iRVision for inspection and guided motion
- Safety: Integrated safety systems with interlocks and tracing for instructional fault simulation
FANUC is the #1 brand of industrial robotics and CNC controls in the world
When your students enter the workforce, they’re going to be working with FANUC robots and FANUC CNC controls. With FANUC’s CERT program, you can equip your students with the skills and knowledge companies need, enabling your students to add value to their employer immediately.
1,000,000+ robots installed worldwide
5 million+ CNC controls worldwide
1,600 certified FANUC education partners
FANUC Certified Education
FANUC certified education programs provide industry-relevant training and competency-based skills development for industrial automation. As an authorized Education Solutions Provider, Mission Learning Systems can help you become one of the 1,600 FANUC CERT schools across the globe.
And with FANUC’s network of training partners, you can teach everything from basic operation and programing, to vision systems, robotic welding, and systems integration.
Hear from schools leading automation education
See how high schools and technical and community colleges are preparing their students for high-wage, high-demand careers in industrial automation.
Automation training solutions for every program and learner
The FANUC suite of training solutions covers every aspect of automation technology, from foundational to advanced skills. By developing a comprehensive program, you can prepare learners to enter careers as operators, technicians, programmers, engineers, and integration specialists.
Basic Operator
Students with this level will attain a basic understanding of robot and CNC operations and programming, material handling and its components, and preventative maintenance with troubleshooting. Students will work with standard robot or cobot carts, CNC simulators and 2- and 3-axis machines.
Intermediate Technician
Students with this technical level have a more thorough understanding of robot and CNC operations and programming, material handling and its components, robotic welding, multi-axis machine tools, as well as integrated technology, such as 2D iRVision, conveyors, digital and Ethernet I/O.
Advanced Systems Integrator
Advanced training options teach integrated technologies and how they communicate as a fully-automated system. In addition to robots and CNC machine tools, students will work with PLCs, HMIs, area scanners, light curtains, wireless communication and I/O, pneumatic devices, smart sensors, RFID tags, conveyors, and data analytics.
