Electric Steering and Suspension System Trainer
Give students hands-on experience with the mechanical and electronic components behind automotive electric power-assisted steering systems. The Electric Steering and Suspension Trainer (764-02) combines real automotive components with ECU control, diagnostic access, electrical measurements, and fault insertion for practical steering and suspension training.

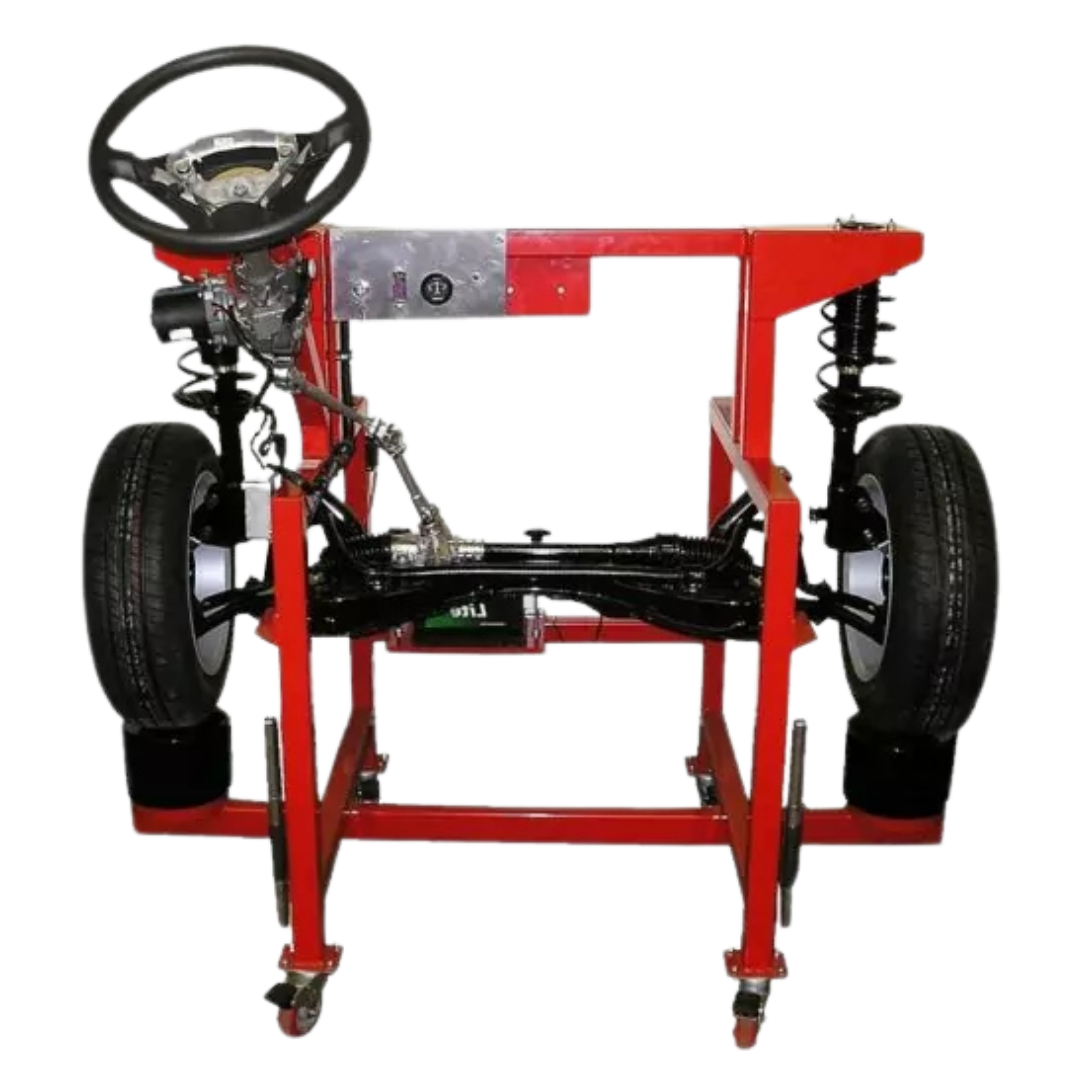

The Electric Steering and Suspension Trainer (764-02) from LJ Create is a fully operational electric power-assisted steering and suspension system. Real automotive components are mounted on a movable steel frame, allowing students to clearly identify and investigate the mechanical and electronic components that work together within the system.
This trainer incorporates an electric power steering rack and ECU alongside the steering column, torsion bar, wishbones, and front hub assemblies. A manufacturer diagnostic socket, pin-out box, ammeter, and six insertable electrical faults allow students to move beyond component identification and develop practical skills in electrical measurement and automotive steering system diagnostics.
Features
- Fully operational electric power-assisted steering introduces modern automotive steering technology.
- Real automotive components connect electronic steering control with mechanical suspension systems.
- Electric power steering ECU provides experience with electronically controlled steering.
- 16-pin diagnostic socket supports automotive diagnostic equipment.
- Integrated pin-out box enables real-time electrical measurements without compromising the wiring harness.
- Built-in ammeter allows students to observe electrical current draw during system operation.
- Six insertable faults create repeatable electrical troubleshooting scenarios.
Electric Power-Assisted Steering
Investigate the components and operation of an electric power-assisted steering system.
Steering & Suspension Components
Identify the steering column, steering wheel, torsion bar, wishbones, front hub assemblies, and other mechanical components within the system.
Electric Steering Control
Explore the relationship between the electric power steering rack, ECU, and mechanical steering system.
Suspension Loading
Investigate steering and suspension operation under load using the integrated jacks beneath the road wheels.
Electrical Measurement
Observe current draw and take real-time electrical measurements through the trainer’s ammeter and pin-out box.
Automotive Diagnostic Systems
Access the system through the manufacturer’s 16-pin diagnostic socket for practical automotive diagnostic investigation.
Electrical Fault Finding
Investigate and diagnose six insertable faults within the trainer’s electrical wiring.
Electric Steering and Suspension Trainer (764-02) Product Details
Components
- Electric power steering rack
- Electric power steering ECU
- Steering column
- Steering wheel
- Torsion bar
- Wishbones
- Front hub assemblies
- Sub-frame
- Road wheels
- Suspension loading jacks
- Manufacturer’s 16-pin diagnostic socket
- Ammeter
- Pin-out box with 2 mm sockets
- Fault-insertion panel
Trainer Capabilities
- Fully operational electric power-assisted steering and suspension system
- Jacks beneath road wheels for loading the suspension
- Manufacturer’s 16-pin diagnostic socket
- Integrated ammeter for observing current draw
- Pin-out box for taking real-time electrical values without compromising the wiring harness
- Six insertable electrical faults
- Box-section steel frame with casters
- Powder-coated finish
- Right- and left-hand-drive configurations available
System Includes
- Electric Steering and Suspension Trainer
- Manual
Requirements
- Automotive workshop tools
- 12V, 44Ah battery
Technical Specifications
- Trainer Dimensions: Approx. 63 × 43 × 65 in (W × D × H)
- Supply Voltage: 12V DC
- Fault Insertion: 6 faults
