HandySCAN Black Series | 3D Scanner
Metrology-grade precision in a portable handheld scanner.
The HandySCAN 3D BLACK Elite is Creaform’s flagship 3D laser scanner, delivering professional accuracy of 0.025 mm with 11 blue laser crosses that capture 1.3 million measurements per second. Students can perform dimensional inspection, reverse engineering, and quality control with certified ISO 17025 accuracy, making industrial-grade measurement accessible for advanced STEM education and engineering programs.

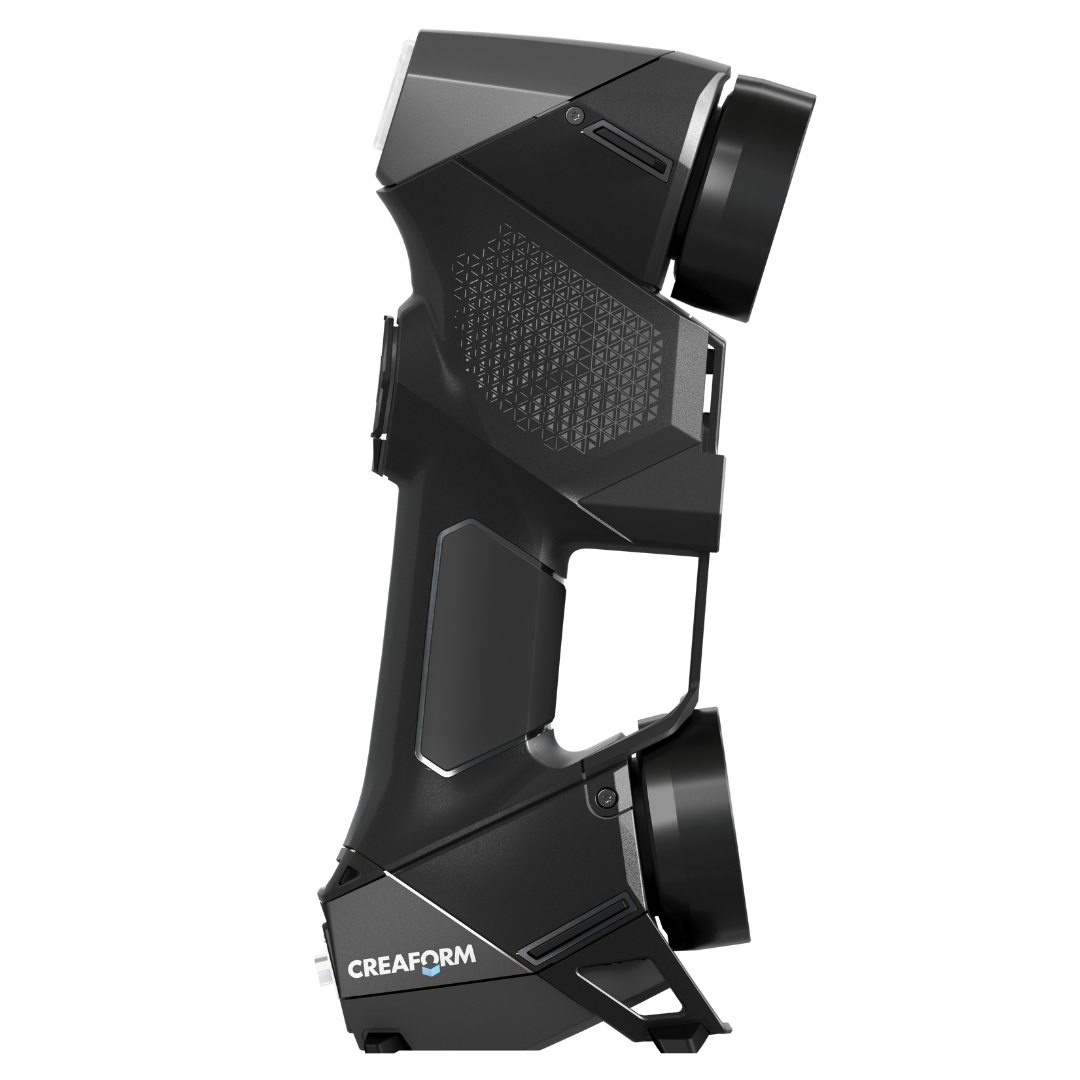

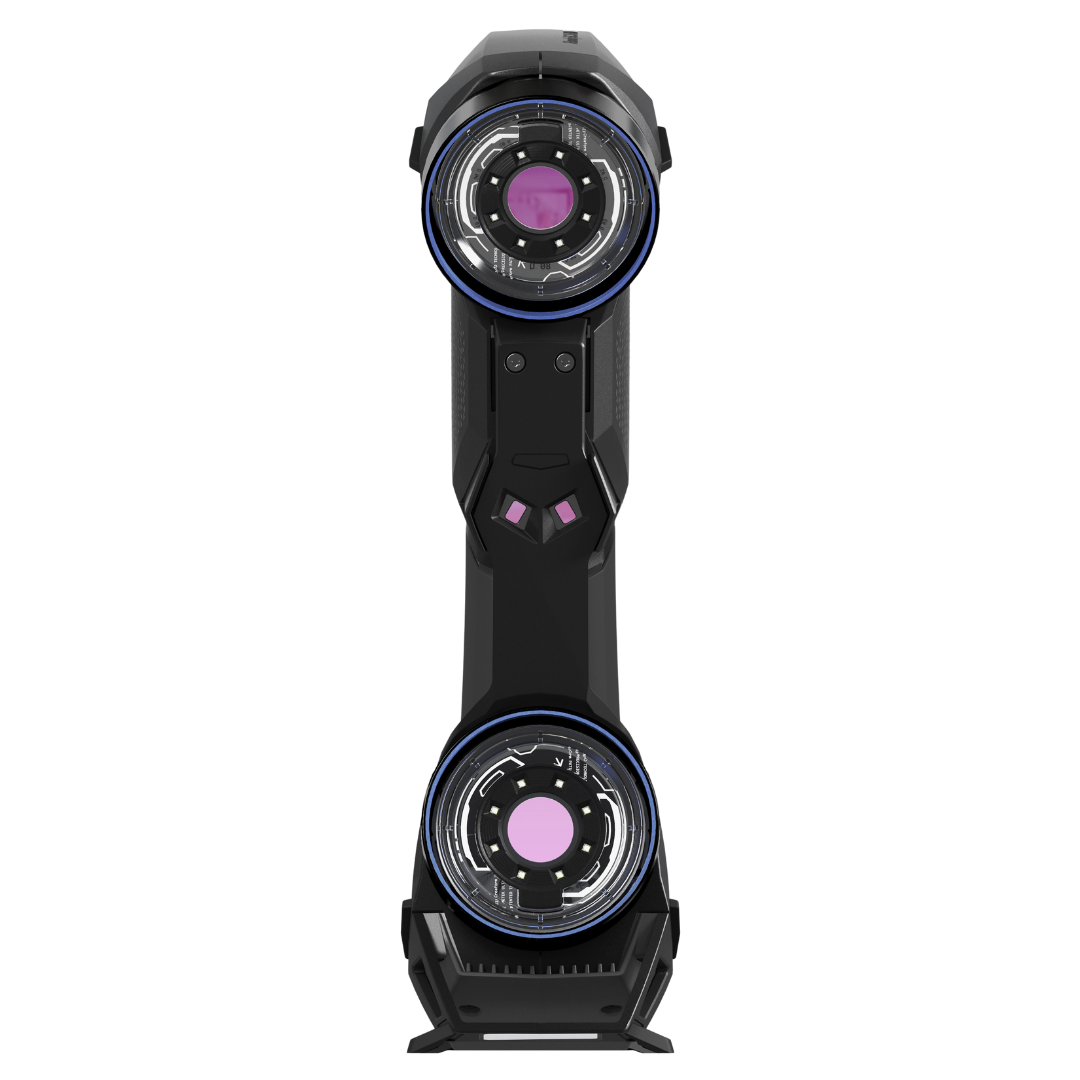

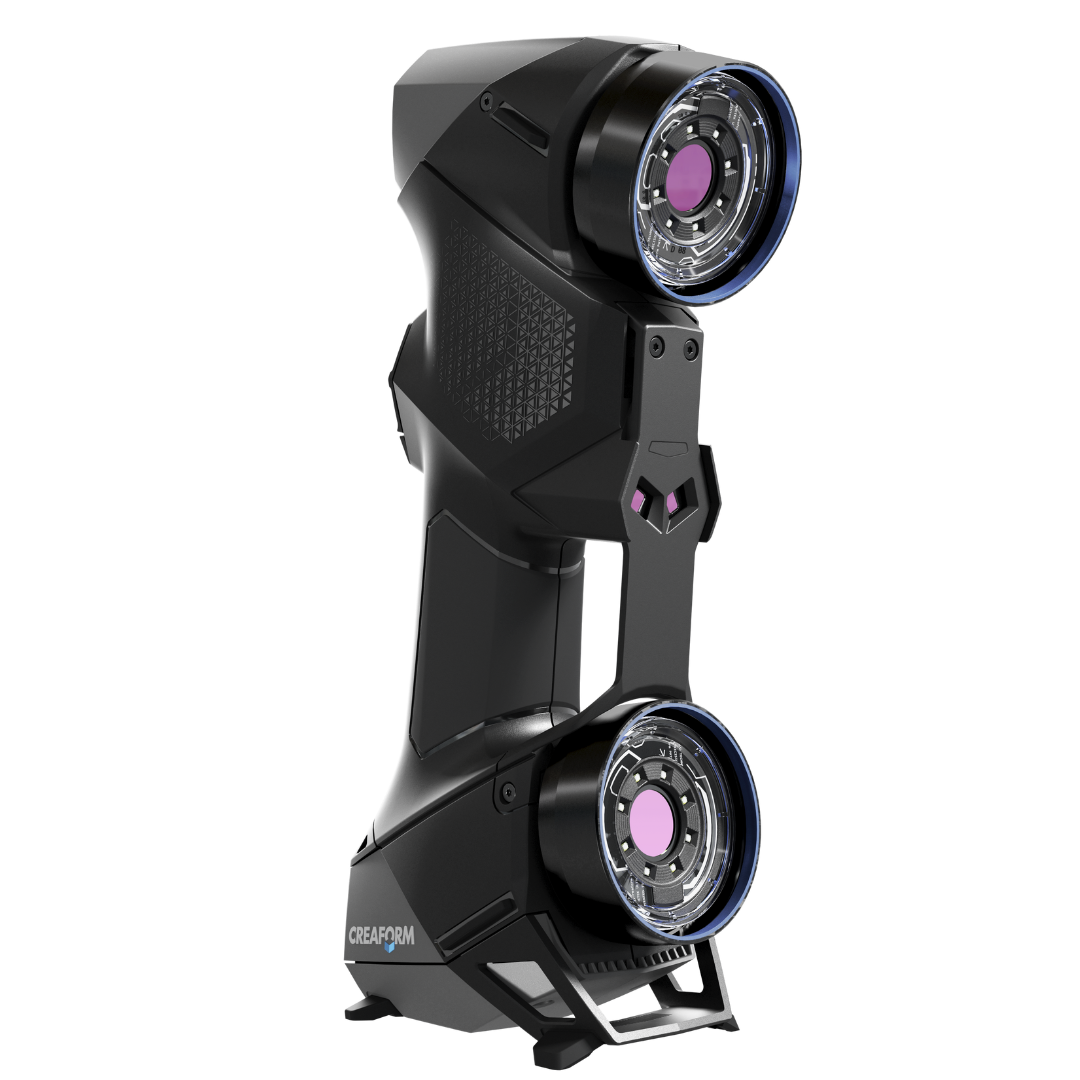

The HandySCAN 3D BLACK Elite is a metrology-grade portable 3D laser scanner designed to bring professional measurement technology into advanced educational environments. Weighing just 0.94 kg (2.1 lbs) with an ergonomic design, this stand-alone device requires no tripod or external tracking and delivers certified accuracy regardless of environmental conditions. Using 11 blue laser crosses generated by two laser sources, the scanner captures up to 1.3 million measurements per second with automatic real-time mesh generation. The Flex Volume feature allows rapid scanning of large parts from a distance (up to 2.5m) and precise scanning of smaller parts at closer range (0.3m). Dynamic referencing technology means both the scanner and part can move during scanning without affecting accuracy. The included VXelements software suite provides integrated tools for data acquisition, dimensional inspection, scan-to-CAD, and quality control workflows. Each scanner is ISO 17025 certified with personalized calibration documentation. Perfect for postsecondary engineering programs, advanced manufacturing courses, and technical colleges focused on precision measurement and quality assurance.
Features:
- Metrology-grade accuracy of 0.025 mm (0.0009 in)
- Ultra-fast measurement rate of 1,300,000 points per second
- 11 blue laser crosses plus single laser line mode for intricate areas
- Lightweight at 0.94 kg (2.1 lbs) for fatigue-free operation
- Dynamic referencing allows part and scanner movement during scanning
- Flex Volume technology with 0.3m to 2.5m working distance
- Automatic real-time mesh generation
- ISO 17025 certified with traceable accuracy documentation
- No tripod or external tracking required—fully portable
- Includes VXelements software suite (VXscan, VXinspect, VXmodel)
- Quick setup—ready to scan in under 2 minutes
- Works in any environmental conditions without performance loss
Reverse Engineering & Product Design
Learn professional workflows for digitizing existing products, analyzing component geometry, and creating accurate CAD models from physical objects.
Advanced Digital Fabrication
Master the complete scan-to-manufacture pipeline, including 3D scanning, mesh processing, CAD integration, and preparation for 3D printing or CNC machining.
Structured Light Technology
Understand how white light scanning systems use projected patterns and camera triangulation to capture three-dimensional geometry with professional precision.
Quality Control & Metrology
Explore dimensional inspection techniques by comparing scanned parts against CAD specifications to verify manufacturing tolerances and identify defects.
Real-Time Data Processing
Discover how advanced algorithms generate 3D meshes instantaneously during scanning, eliminating post-processing delays through live mesh fusion.
Color & Texture Mapping
Learn how high-resolution texture capture enhances 3D models for applications in AR/VR, digital archiving, cultural preservation, and photorealistic rendering.
Problem-Solving with Multiple Materials
Develop scanning strategies for different surface types, colors, and geometries while understanding how to optimize tracking and data quality.

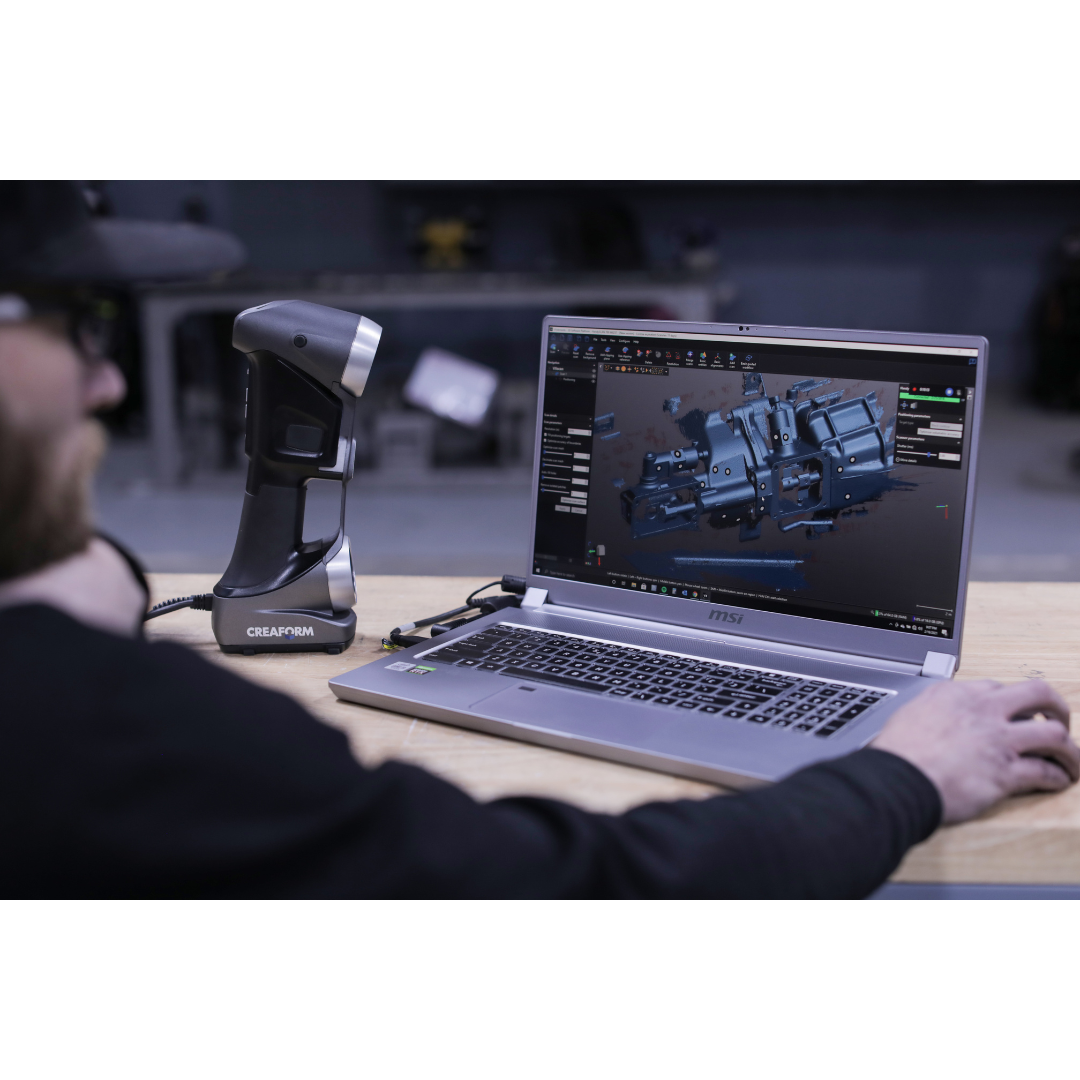

Professional Software Workflows
Build proficiency with industry-standard scan-to-CAD software for mesh editing, alignment, inspection, and seamless export to engineering applications.
HandySCAN 3D Black Elite Product Details
- Accuracy: 0.025 mm (0.0009 in) standard; 0.012 mm (0.0005 in) Limited Edition
- Volumetric Accuracy: 0.020 mm + 0.040 mm/m (0.0008 in + 0.0005 in/ft)
- Volumetric Accuracy (with MaxSHOT): 0.020 mm + 0.015 mm/m (0.0008 in + 0.00018 in/ft)
- Measurement Rate: Up to 1,300,000 measurements/second
- Light Source: 11 blue laser crosses (2 laser sources) plus 1 extra line
- Working Distance: 0.3 m to 2.5 m (1 ft to 8.2 ft) with Flex Volume
- Scanning Area: Large area coverage with 11 laser crosses
- Weight: 0.94 kg (2.1 lbs)
- Setup Time: Less than 2 minutes
- Certification: ISO 17025 accredited, VDI/VDE 2634 Part 3 compliant

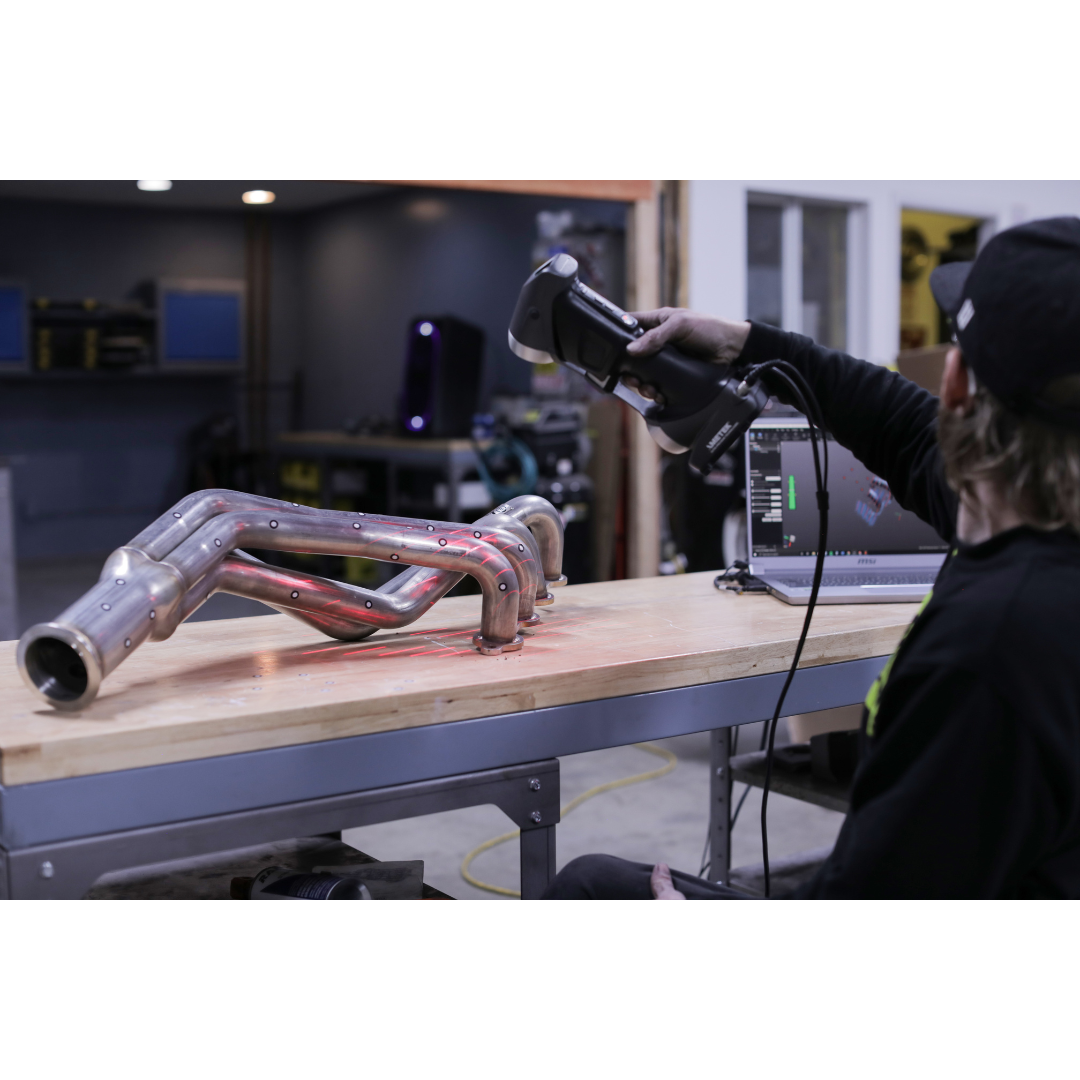

- Positioning Method: Dynamic referencing with photogrammetry targets
- Software: VXelements (includes VXscan, VXinspect, VXmodel, Pipeline)
- Compatible OS: Windows 10/11 (64-bit)
- Export Formats: STL, OBJ, PLY, STEP, IGES, and more
- Connectivity: USB 3.0
Educational Solutions Suite
Which 3D Scanner is right for you? With Creaforms’ lineup of academic solutions, find your perfect fit.
From small-scale scanning for art restoration and color to large-scale trains and aerospace components, they’ve packed reliability and precision into portable 3D scanners for every application.
Full Software Suite
The Creaform Metrology Suite provides specialized software modules tailored for various metrology tasks, including reverse engineering, inspection, automation, and dynamic tracking. Included in the software suite:
- Scan-to-CAD Module: Transfers scanned data directly into CAD platforms
- Inspection Module: For dimensional analysis and quality control workflows
- Automation Module: Simplifies programming for automated inspection routines
- Dynamic Tracking Module: Enables real-time position tracking of multiple objects
Together, these modules let you tailor coursework to your program’s needs while students practice on industry-standard tools across multiple technical fields.
Creaform.OS
Creaform.OS is the integration software connecting hardware and software seamlessly during data acquisition. Built-in onboarding tools and embedded training content allow students to learn independently, reducing instructor workload, while workflow-oriented interfaces guide users through each scanning step. Students gain hands-on experience with professional-grade software that mirrors real industry workflows.
See Creaform's 3D scanners in action!
3D Scanning Applications
Creaform’s 3D measurement technologies have been included in a growing number of higher education curricula and research projects. Here are just some of the fields in which Creaform has helped research teams make important discoveries.
Engineering and Manufacturing
Equip students to reverse engineer components, inspect tolerances, and build digital twins by comparing scanned parts against CAD models, developing real-world skills in quality control and design iteration.
Industrial Maintenance and Metrology
Prepare technicians for industry-standard inspection workflows using Creaform’s tools to execute complete QA/QC processes with GD&T standards and real-world tolerance requirements.
Digital Design and CAD/CAM
Enable students to digitize physical prototypes, fixtures, and handmade models for direct integration into CAD software, bridging hands-on fabrication with digital design and manufacturing.
Biomedical and Veterinary Science
Support emerging applications in prosthetics, orthotics, and animal health by scanning anatomical structures for custom device design, fit analysis, and clinical study.
Art and Historical Preservation
Digitally capture artifacts, sculptures, and more for preservation, reproduction, and immersive study, ideal for museum collaborations and cross-disciplinary projects.
Connect with Solidworks or any other CAD software.
