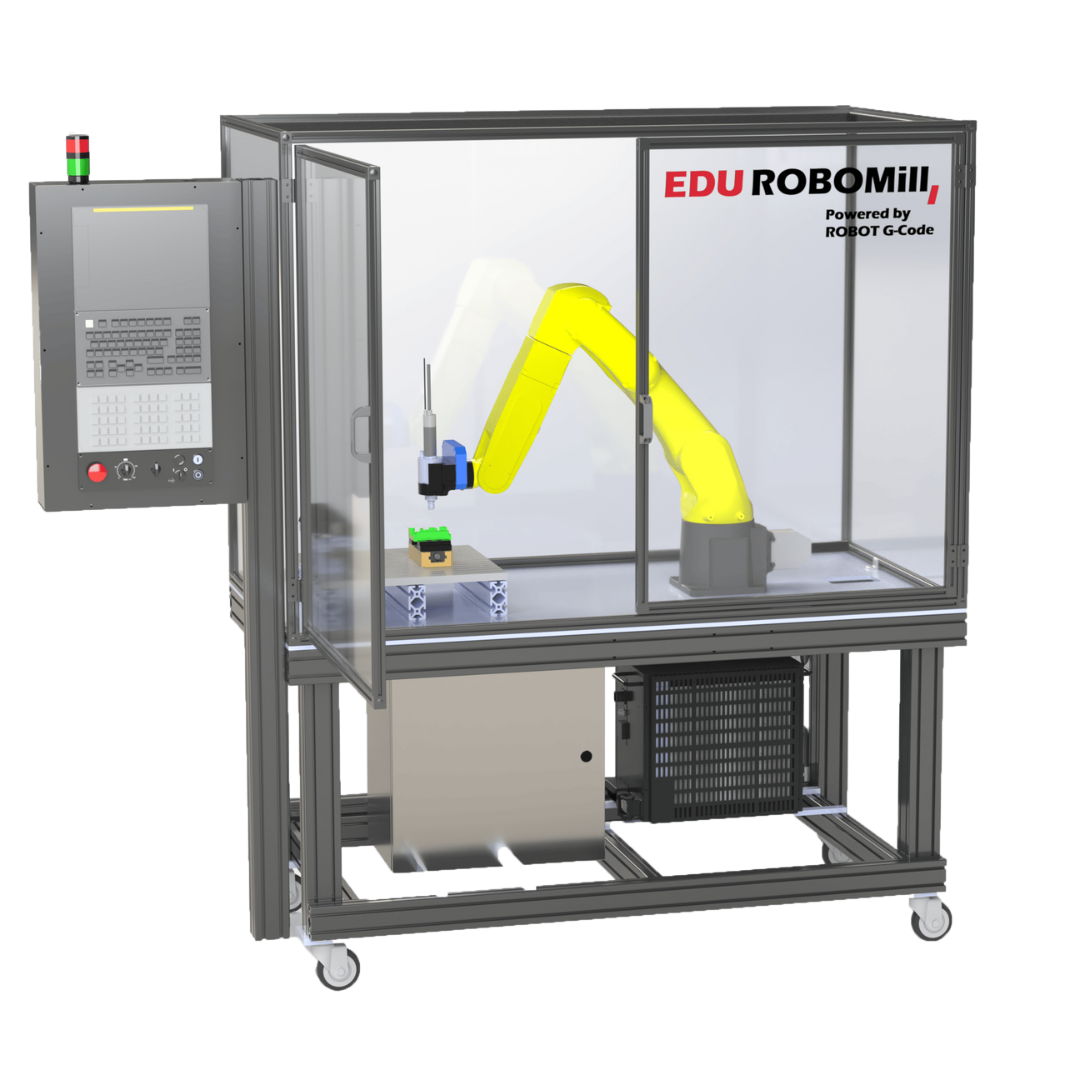

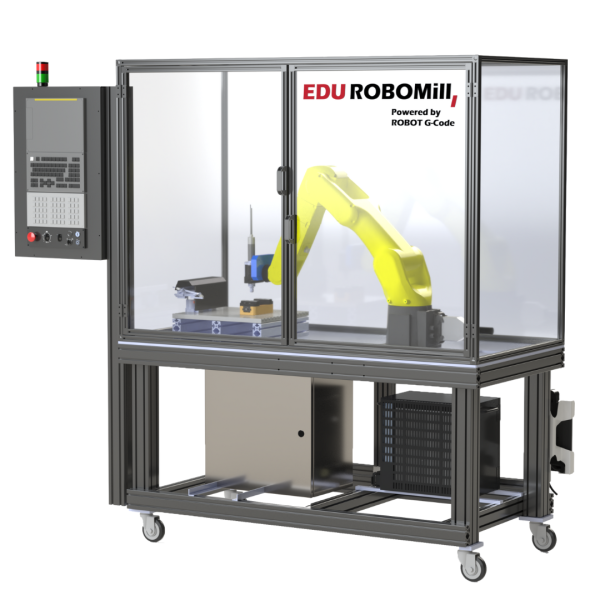

Levil EDU RoboMill
The Levil EDU RoboMill combines a FANUC CNC control with robotic automation, transforming a 6-axis FANUC robot into a fully functional CNC machining platform. Using standard G-code, students can learn real-world CNC and robotics programming in one compact, industrial-grade system—ideal for advanced manufacturing education.
Where Robotics and CNC Machining Meet
The Levil EDU RoboMill is the future of industrial automation! This machine merges the flexibility of a FANUC robot with the precision of CNC machining. Using FANUC’s Robot G-code interpreter, this system allows a robot to read and execute standard G-code, just like a traditional CNC mill.
Students can program and simulate machining paths in familiar CAM software (like Fusion 360 or Mastercam), generate G-code, and send it directly to the FANUC robot. The robot executes these commands with CNC-level accuracy, operating spindles for cutting, trimming, milling, and more.
Designed for both classroom learning and real-world industrial applications, the EDU RoboMill offers a powerful solution for schools that want to teach automation, robotics, and CNC machining in a single platform. The compact design fits through standard doorways and can be customized to fit any learning environment.
Features
- FANUC Robot G-code interpreter: Converts G-code into robotic movement for precise multi-axis machining
- Compatible with CAM software including Fusion 360 and Mastercam
- G-code support: Linear and circular movement commands (G0, G1, G2, G3)
- Dual spindle options based on robot payload (30,000 rpm or 14,000 rpm)
- Built on a modular base for portability and classroom integration
- Easy setup and programming—no robot-specific coding required
- Supports robotic machining, CNC milling, trimming, tending, and 3D printing tasks
- Future-proof modular design scalable for evolving applications
Learning Outcomes
- Robotic CNC Programming: Use G-code to control robotic arm movements and spindle functions, learning CNC and robotic workflows on one platform.
- CAM-to-Robot Workflow: Program toolpaths in CAM software, export G-code, and execute on a robotic system—mirroring real-world automation.
- CNC Machining Skills: Understand spindle selection, feed rates, dwell times, and tool changes through hands-on experience.
- Multi-Axis Automation: Train on up to 6-axis coordinated movement and machining within a compact cell.
- Flexible Industrial Applications: Explore how one robot can switch between milling, tending, trimming, and other automated tasks.
Instructor Resources & Training
Instructor training and support are available through FANUC, Mission Learning Systems, and Levil Technology, covering topics such as robotic programming, CNC control, system integration, and machine operation. These resources help educators confidently implement the EDU RoboMill into advanced manufacturing and automation programs.
Student Curriculum & Certifications
Ask us about FANUC eLearn curriculum and how you can become a certified NOCTI testing site to deliver industry-recognized certifications to your students.
EDU RoboMill Machine Features:
Controls & Programming
- Controller: FANUC 0i-MF Plus
- Programming: Standard CNC G-code via FANUC Robot G-code interpreter
Spindle Options
- Option 1 (All robots): 30,000 rpm, 0.47 hp, QC3 taper
- Option 2 (robots with 10kg+ payload): 14,000 rpm, 2 hp, S20T taper
- Automatic tool changer: Yes
- Cooling: Air-cooled
- Max torque: 0.11 Nm (Option 1), 2.5 Nm (Option 2)
Motion & Feed
- Axes: 6-axis robotic arm (model dependent)
- Feed rates: 79 ipm rapid, 59 ipm cutting
- Repeatability: 0.0012 inches / 0.03 mm
Machine Dimensions
- Width: 83.6 in.
- Depth: 32.9 in.
- Height: 74.77 in.
- Fits through standard doorway: Yes
- Weight: Coming soon
Work Table
- Size: 16.73 in. x 14.76 in.
- T-slot pattern: 0.3346 in. width, 2 in. spacing, 15 total slots
Electrical Requirements
- Power: 220 VAC (with step-down transformer for 110 VAC)
- Amps: 15 A
- Phase: Single phase
Customization Available
- Workspace can be tailored to robot reach and application needs
