LiveArc™ Augmented and Live Welding System
The bridge between simulation and live welding.
Miller LiveArc™ combines augmented guidance with live arc practice in MIG and Stick welding, giving students the tools to refine technique, build confidence, and prepare for industry success.
Refine skills with real welding.

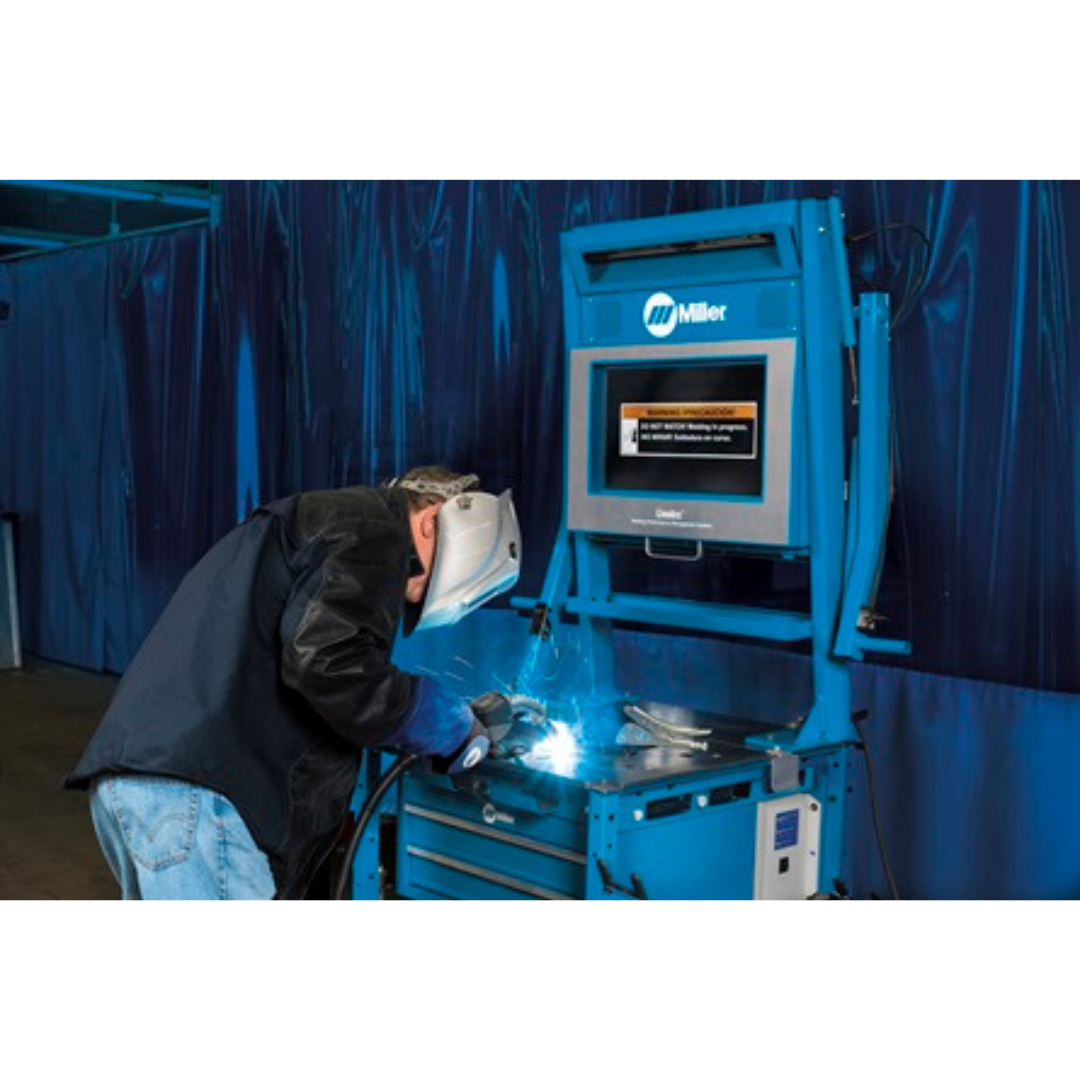

The Miller LiveArc™ is an advanced welding training solution that combines augmented guidance with live arc welding, giving students both simulation-based instruction and hands-on practice. With its SmartGun® MIG gun and SmartStinger® Stick electrode holder, LiveArc provides real-time feedback on angles, aim, and contact tip-to-work distance (CTWD) as learners practice actual welds.
Designed for intermediate to advanced students, LiveArc bridges the gap between classroom learning and workforce-ready performance. Instructors can assign exercises, track results, and reduce consumable costs while still delivering authentic training. Integrated with Miller OpenBook™, LiveArc connects theory, guided simulation, and live practice in one system.
Features:
- Combines augmented feedback with live GMAW, FCAW-G, and SMAW welding
- SmartGun® provides tactile vibration and on-screen feedback to guide technique
- SmartStinger® extends capabilities to Stick welding
- 21.5″ HD touchscreen monitor for assignments, scoring, and post-weld feedback
- Real-time scoring and playback reinforce skill development
- Preloaded Miller assignments, plus customizable instructor-created lessons
- Reduces costs by improving first-pass quality and minimizing wasted materials
- Compatible with Miller power sources; durable ArcStation® base with storage and mobility
Welding Process Mastery
Develop advanced skills in GMAW (MIG), FCAW-G, and SMAW (Stick) welding.
Welding Parameters & Technique
Understand and apply travel angle, work angle, aim, CTWD, and travel speed for high-quality welds.
Assignment-Based Learning
Complete structured groove and fillet weld projects with customizable instructor criteria.
Miller OpenBook™ Integration
• Preloaded with Miller-designed groove and fillet assignments
• Supports SMAW upgrade module for expanded curriculum
• Instructors can configure assignments, parameters, and scoring criteria
• Tracks student progress with detailed history, statistics, and downloadable reports
LiveArc™ Product Details
- Processes: MIG (GMAW-S, GMAW-P), Flux-Cored (FCAW-G), Stick (SMAW)
- Welding Positions: 2F–4F; 1G–4G
- Joints: Lap, T-joint, butt joint (square groove), single V-groove, single-bevel groove
- Input Power: 120 V, 60 Hz
- Rated Output:
– SmartGun®: 400 A at 60% duty cycle (GMAW)
– SmartStinger®: 250 A at 60% duty cycle (SMAW) - Electrode Capacity:
– SmartGun®: up to 5/64 in. (2.0 mm)
– SmartStinger®: up to 1/8 in. (3.2 mm) - Computer: Intel® Core i7, 128 GB SSD, fanless cooling, HDMI port for secondary display
- Monitor: 21.5 in. HD LCD touchscreen, glove-friendly

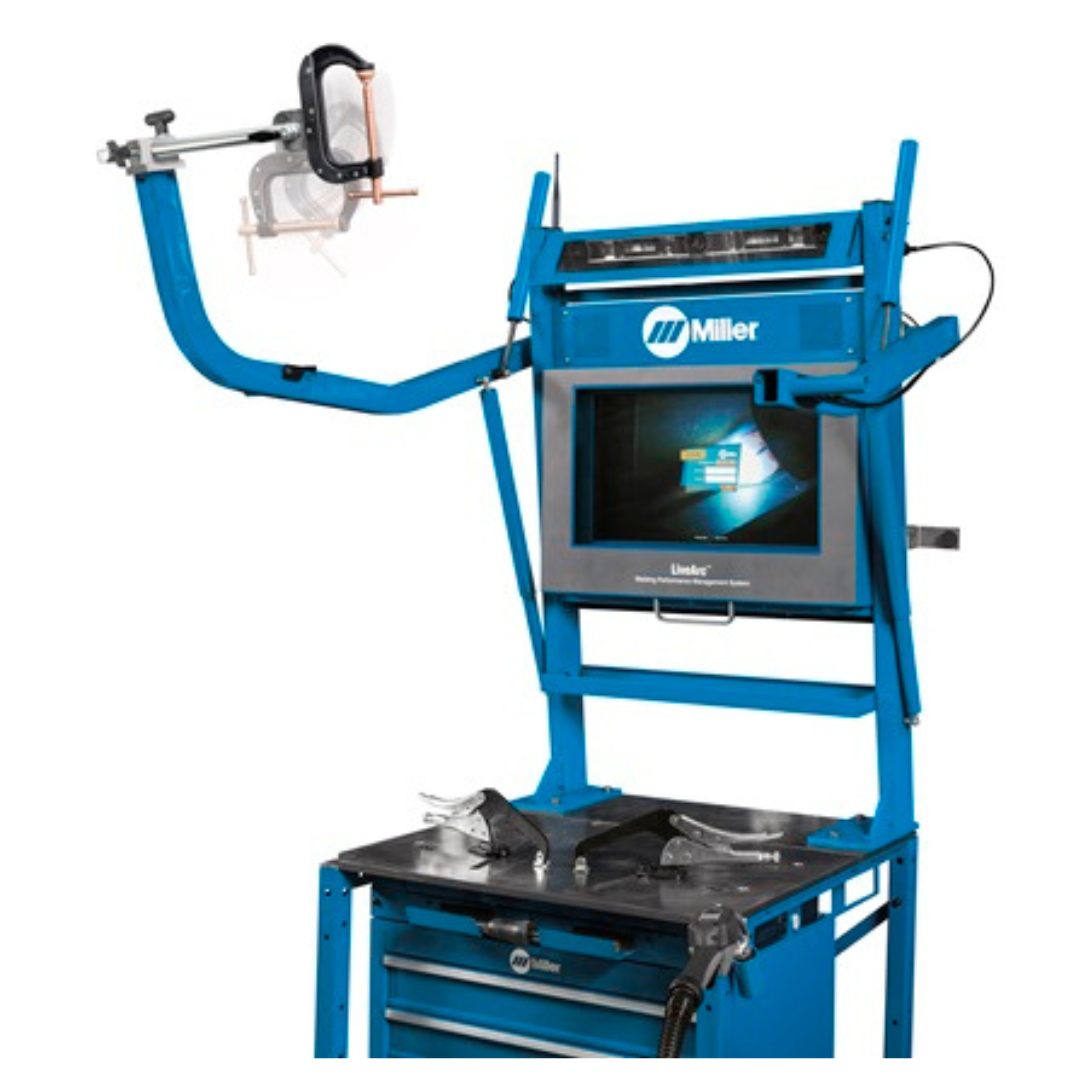

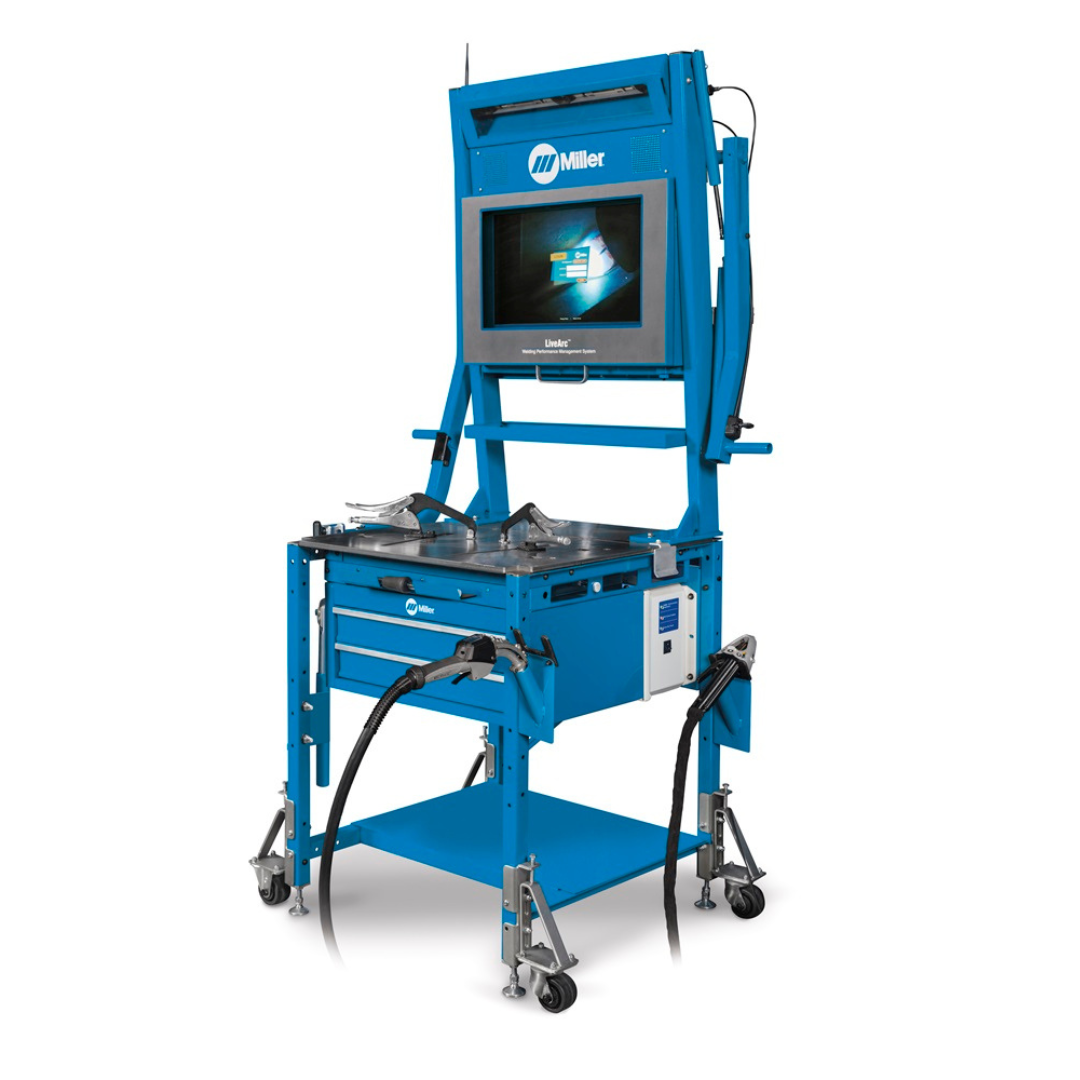

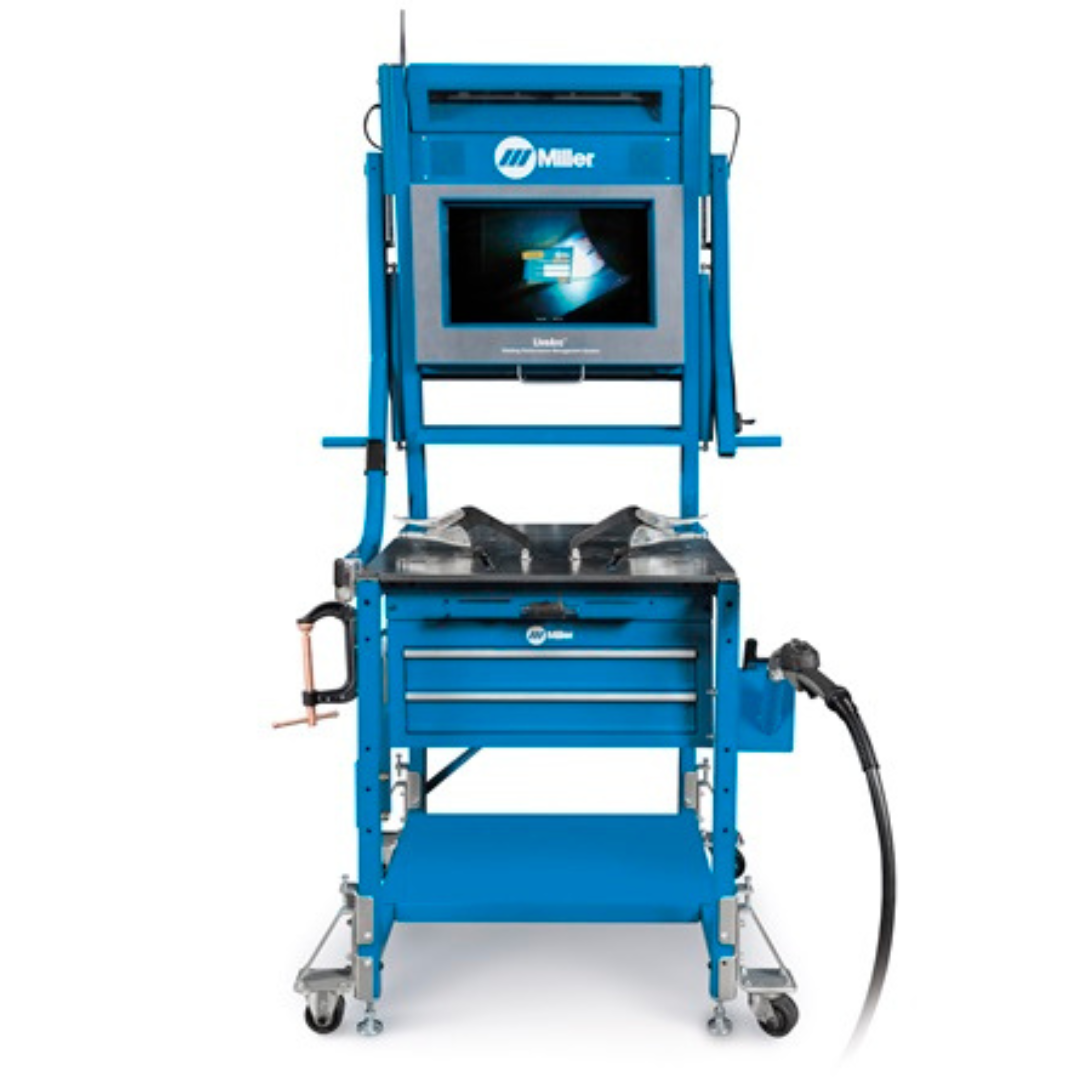

- Base: ArcStation® with reversible ½ in. steel tabletop, drawers, clamps, and casters
- Dimensions: 77.5 in. H x 46 in. W x 31 in. D (1,969 x 1,168 x 787 mm)
- Weight: 527 lb (239 kg)
