Manual Air Conditioning Trainer

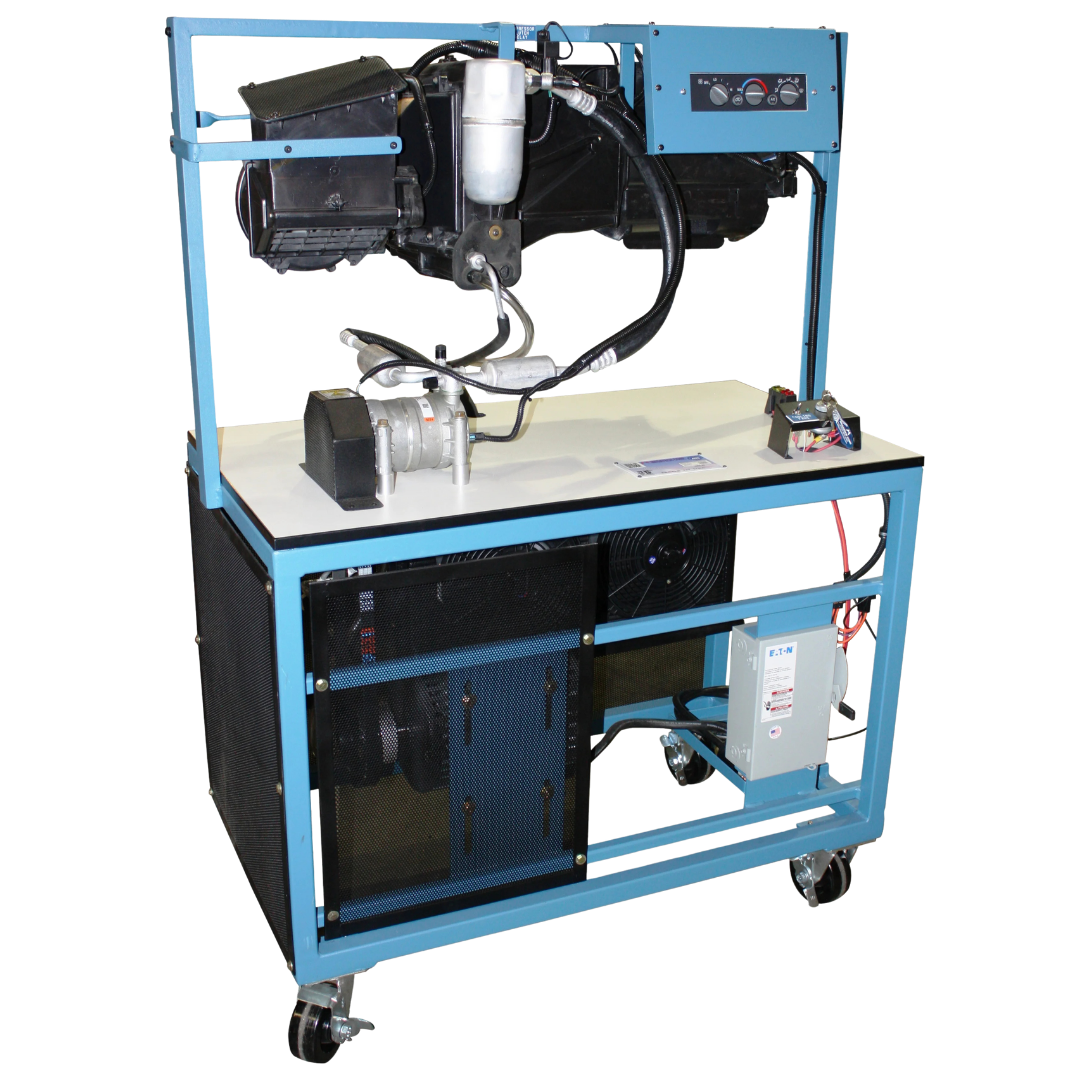

The Manual Air Conditioning Trainer features a 5 HP electric motor-driven compressor system with authentic automotive components, sight glass for phase change observation, and complete R134a refrigerant charging equipment. This pre-assembled trainer allows students to practice charging, leak detection, component replacement, and complete AC system service procedures.
The Manual Air Conditioning Trainer provides comprehensive hands-on instruction in automotive air conditioning service using a fully operational manual AC system. Powered by a 5 HP electric motor that drives an authentic automotive compressor, this trainer replicates real-world AC operation without requiring a running engine. Students work with a complete refrigerant circuit, including condenser, evaporator with blower motor, fixed orifice tube expansion device, and pressure cycling switch—all authentic components found in manual AC systems. The integrated sight glass allows visual observation of refrigerant phase changes and bubble formation, teaching students to identify proper charge levels and system conditions. Pre-assembled and pre-charged with R134a refrigerant, this trainer is ready for immediate use while also allowing students to practice recovery, evacuation, and recharging procedures. The included manifold gauges, charging hoses, and battery cables provide everything needed for professional AC service training. Students learn to diagnose system performance, check for refrigerant leaks, replace faulty components, and service AC parts using industry-standard procedures.
Features:
- 5 HP electric motor drives authentic automotive compressor
- Complete manual air conditioning system with R134a refrigerant
- Control panel for system operation and monitoring
- Blower motor with evaporator for complete cooling demonstration
- Automotive condenser for heat rejection and refrigerant condensation
- Pressure cycling switch for compressor clutch control
- Fixed orifice tube expansion device (most common in modern vehicles)
- Integrated sight glass for visual phase change observation
- Pre-assembled and pre-charged, ready for immediate use
- Included manifold gauges for pressure monitoring and diagnostics
Manual AC System Operation
Understanding how manual air conditioning systems cycle on and off using pressure switches and how refrigerant flows through the complete circuit.
Refrigerant Charging Procedures
Practicing proper AC system charging techniques, determining correct refrigerant levels, and using manifold gauges to monitor system pressures.
Leak Detection and Diagnosis
Using electronic leak detectors, UV dye, and pressure testing to identify refrigerant leaks in hoses, fittings, and system components.
Component Replacement and Service
Removing and replacing AC components, including compressors, condensers, orifice tubes, and pressure switches, using proper service procedures.
Phase Change Observation
Observing refrigerant state changes through the sight glass to understand liquid-to-vapor transitions and identify system conditions like low charge or moisture contamination.
Pressure Cycling Switch Operation
Understanding how pressure switches protect the compressor and control system cycling based on refrigerant pressure.
Manual Air Conditioning Trainer Product Details
System Includes:
- 5 HP electric motor
- Automotive AC compressor
- Control panel
- Blower motor with evaporator
- Condenser
- Pressure cycling switch
- Fixed orifice tube
- Sight glass for phase change observation
- Manifold gauge set
- Charging hoses
- Battery cables
- Pre-charged with R134a refrigerant
