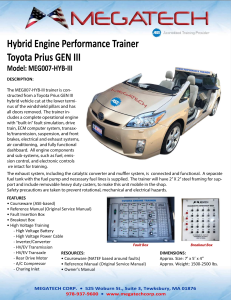

Hybrid Engine Performance Trainer – Toyota Prius
The Hybrid Engine Performance Trainer (MEG007-HYB-TP) is a fully operational Toyota Prius Gen III hybrid vehicle platform designed for comprehensive training in hybrid drivetrain, high-voltage systems, diagnostics, and advanced driver assistance technologies.

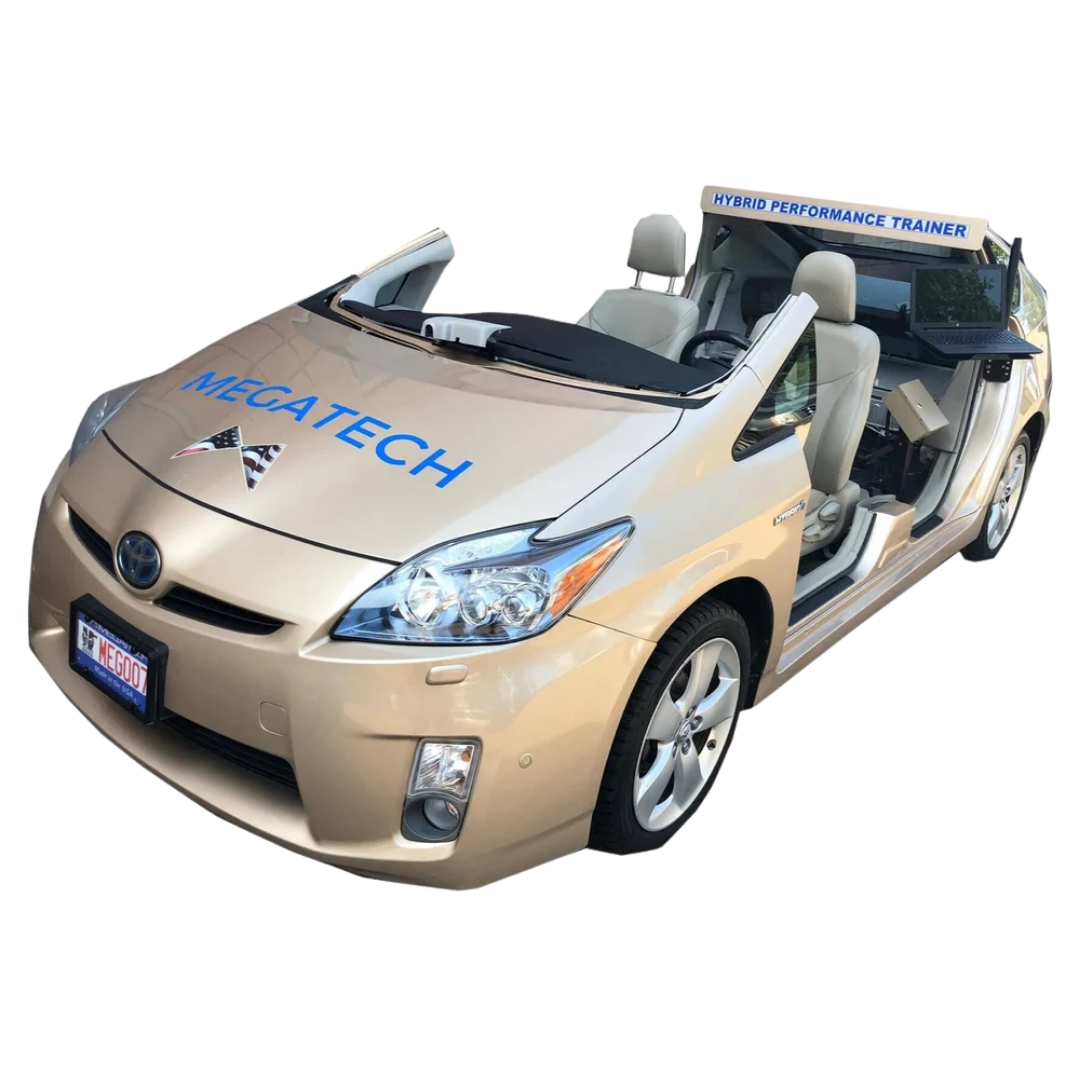

The Hybrid Engine Performance Trainer (MEG007-HYB-III) is constructed from a Toyota Prius GEN III hybrid vehicle, sectioned at the lower windshield pillars and with doors removed, to enhance instructional visibility. The trainer retains a complete, fully operational hybrid powertrain, including the drivetrain, ECM, transaxle/transmission, suspension, front brakes, electrical and exhaust systems, air conditioning, and a fully functional dashboard.
All major engine components and subsystems, including fuel, emission control, and electronic control systems, remain intact for hands-on training. A built-in fault insertion box and breakout box allow instructors to simulate real-world system faults while students practice diagnostic procedures using OEM-style strategies. This trainer provides a comprehensive platform for hybrid system analysis, high-voltage safety instruction, and structured diagnostic training aligned with NATEF- and ASE-based curriculum resources. The unit is supported by a steel frame with heavy-duty removable casters for mobility within the lab environment, and safety precautions are integrated to prevent rotational, mechanical, and electrical hazards.
Features
- Toyota Prius GEN III hybrid vehicle platform
- Built-in fault insertion box
- Breakout box for advanced diagnostics
- High-voltage training components, including:
- High-voltage battery
- High-voltage power cable
- Charging inlet
- Fully functional dashboard and operational engine systems
- Operational exhaust system, including catalytic converter and muffler
- Separate fuel tank with fuel pump and fuel lines supplied
- 2” x 2” steel support frame with removable heavy-duty casters
- NATEF-based courseware and ASE-aligned instructional resources
Hybrid System Architecture Comprehension
Analyzing how the internal combustion engine, electric motor systems, transaxle, and battery management components interact within a hybrid vehicle platform.
High-Voltage System Safety
Applying proper safety protocols when working with high-voltage batteries, power cables, and inverter systems.
Fault Diagnosis and Isolation
Using built-in fault insertion and breakout access to identify and correct hybrid system malfunctions.
ECM and Control System Analysis
Interpreting data and system responses from the engine control module and related hybrid control systems.
Hybrid Powertrain Operation
Understanding how the vehicle transitions between electric and combustion power modes during operation.
Integrated System Testing
Performing structured diagnostic procedures aligned with OEM service strategies and NATEF/ASE standards.
Hybrid Engine Performance Trainer Product Details
System Includes:
- Toyota Prius GEN III hybrid vehicle (sectioned for instructional visibility)
- Built-in fault insertion box
- Breakout box
- High-voltage battery system
- High-voltage power cables
- Inverter/converter assembly
- HV/EV transmission and transaxle
- Rear drive motor
- A/C compressor
- Charging inlet
- ECM computer system
- Fully functional dashboard
- Operational drivetrain, suspension, and front brake systems
- Electrical and exhaust systems
- Separate fuel tank with fuel pump and fuel lines
- 2” x 2” steel frame with removable heavy-duty casters
- NATEF-based courseware
- Original service manual
- Owner’s manual
